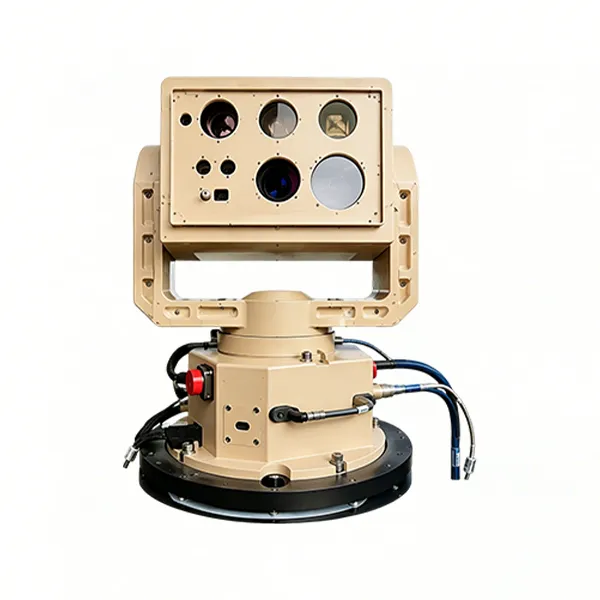

Specification for FinderPro-M Vehicle-Mounted System

Ürün Açıklaması:

The FinderPro-M Vehicle-Mounted System can be mounted on various mobile platforms and operate during high-speed movement. It detects opto-electronic observation and targeting devices near its location through active laser detection, provides high-resolution target images and precise geographic coordinates, and can perform optical interference when necessary. The system also supports optional functions such as laser warning, extended optical response, and acoustic event detection.

Ücretsiz Teklif Alın

Ürün Tanıtımı

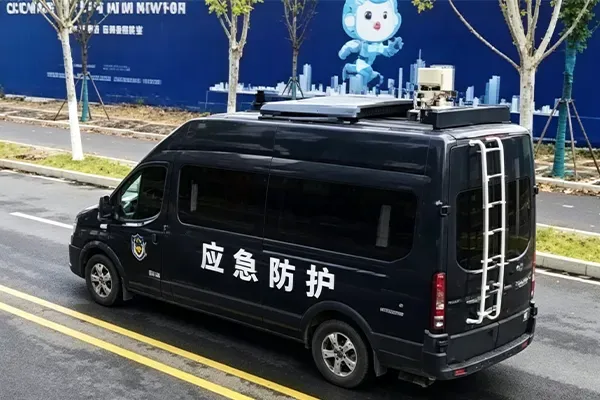

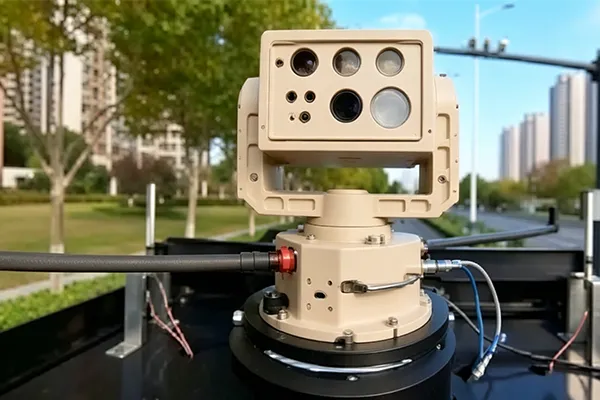

The FinderPro-M Vehicle-Mounted System is designed for mobile deployment on various platforms. It can operate during high-speed movement and detect opto-electronic devices used for observation and targeting near its location.

Through active laser detection, the system provides high-resolution target images and precise geographic coordinates. When necessary, it can perform optical interference on detected targets. Optional functions include laser warning, extended optical response, and acoustic event detection.

Uygulama senaryoları

Eşlik Güvenliği
Yerinde Güvenlik
Anahtar Alanlarda Anti-Keskin Nişancı Koruması
Operasyonlar Sırasında Anti-Keşif ve Karşı Saldırı

Ürün Özellikleri ve Teknik Şartnameler

1. Vehicle-Mounted Mobile Deployment

The system can be mounted on various mobile platforms and operate during high-speed movement.

2. Active Laser Detection

It detects opto-electronic devices conducting observation and targeting near its location through active laser detection.

3. Target Imaging and Geolocation

The system provides high-resolution target images and precise geographic coordinates.

4. Optical Interference Capability

It can perform optical interference on detected targets when necessary.

5. Optional Functional Expansion

Optional functions include laser warning, extended optical response, and acoustic event detection.

Teknik Parametreler

Parametre	Şartname	Parametre	Şartname
Max Moving Speed	≥ 80 km/h	Arama Menzili	360° (Azimuth), -20° ~ +70° (Pitch)
Arama Hızı	360°/s (Azimuth speed, pitch angle range 8°)	Detection Distance Range	Minimum detection distance: 50 m; Maximum detection distance: 2000 m (for equipment with objective lens diameter not less than 50 mm)
Tespit Olabilirliği	≥95%	Yanlış Alarm Oranı	≤10%
Switching Time from Search to Optical Interference	≤3 s	Optical Interference Wavelength	530 nm
Hedef Coğrafi Konum Doğruluğu	Better than 20 m (comprehensive for latitude, longitude and altitude at a target distance of 1 km)
Lazer Mesafe Ölçme	30 m ~ 3000 m	Lazer Uyarısı	Wavelength range: 1 μm ~ 1.6 μm; Angular Resolution: 45°
