Specification for MR-AUS70-RD05-VC4075-TC61023 Radar-EO Detection System

Ürün Açıklaması:

The MR-AUS70-RD05-VC4075-TC61023 Radar-EO Detection System integrates a side-mounted electro-optical pan-tilt unit with a radar detection system. Through unified scheduling by the RGS2000 low-altitude target prevention, control and identification platform, the system enables 360° radar and electro-optical detection. The system supports 5 km search and tracking for low-altitude targets through coordinated radar and electro-optical operation. Radar and EO devices are centrally managed by the platform to support target locking, identification, and monitoring of low-altitude and ground targets.

Ücretsiz Teklif Alın

Ürün Tanıtımı

The MR-AUS70-RD05-VC4075-TC61023 is a medium Radar-EO integrated low-altitude detection system designed for coordinated target search, tracking, and identification.

It combines radar detection, visible-light imaging, infrared thermal imaging, AI target recognition, servo pan-tilt tracking, and RGS2000 platform control.

The system supports radar-electro-optical linkage, target track display, video recording and playback, electronic map display, multi-screen monitoring, auxiliary measurement tools, and unattended multi-target monitoring.

Uygulama senaryoları

Havaalanı Alçak İrtifa Güvenliği

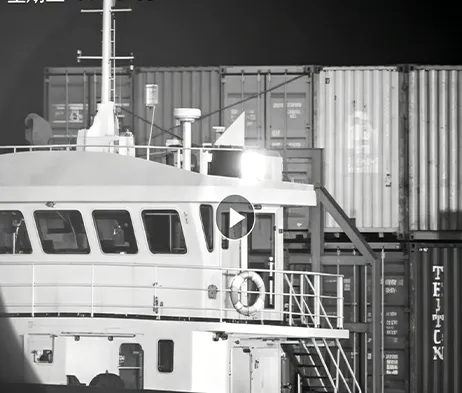

Border and Coastal Monitoring

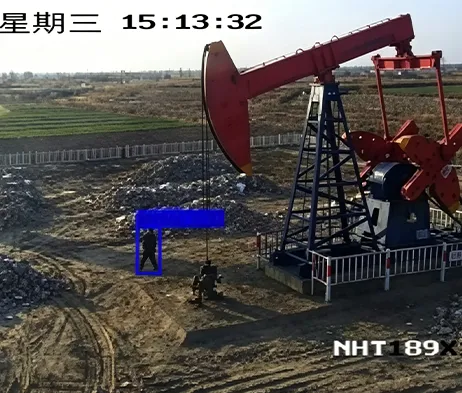

Oil Field Security

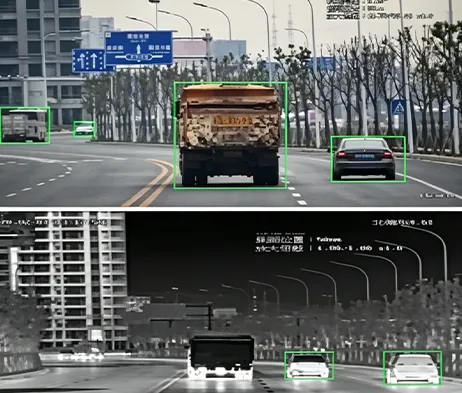

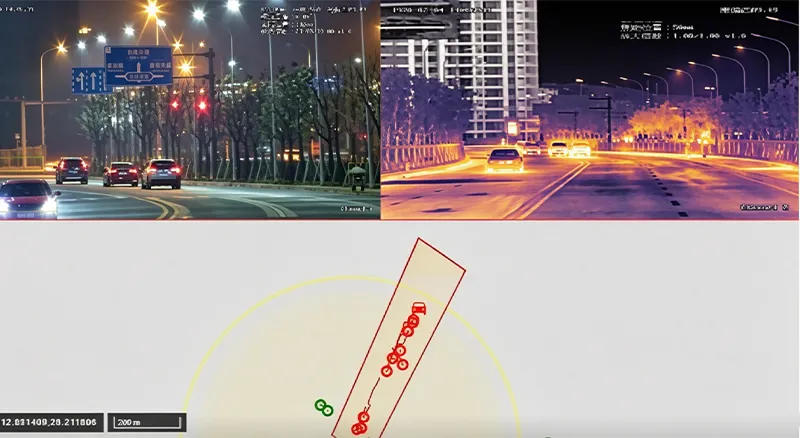

Road safety monitoring

Ürün Özellikleri ve Teknik Şartnameler

Highly Integrated Radar-EO Architecture
Integrates radar detection and electro-optical tracking, supporting both independent operation and efficient linkage.

Easy Installation and Operation
Designed for simple installation, wide application, ready-to-use operation, and simplified calibration and debugging.

High Radar Data Rate and Strong Tracking Capability
The radar supports tracking of multiple targets across a wide radial velocity range.

Strong Target Resolution and Low False Alarm Rate
Adaptive clutter suppression helps reduce false alarms, while the system supports high tracking accuracy and low mistracking probability.

Wide EO Coverage and Fast Response
The electro-optical system offers wide coverage, fast rotation, rapid start-stop response, and strong capability for capturing and tracking fast-moving targets.

High-Precision Servo Control
The system uses a high-precision closed-loop servo control system with positioning accuracy better than 0.005°.

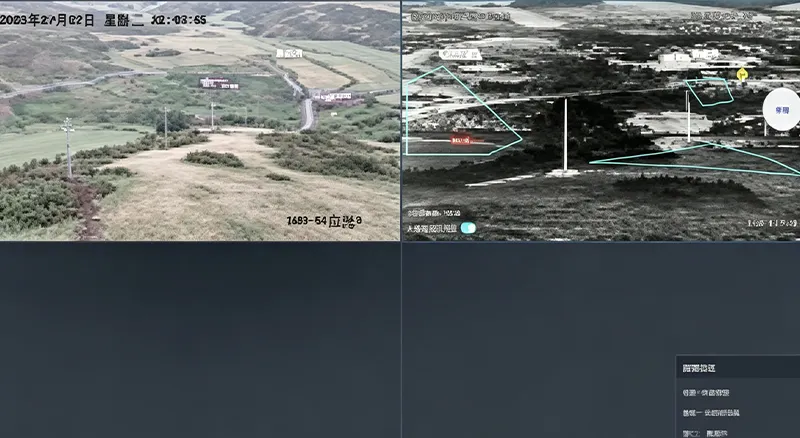

Intelligent Video Analysis
The embedded intelligent video analysis module supports target classification and recognition, unattended alert-area mode, and unattended guided mode.

Teknik Parametreler

Parametre	Şartname	Parametre	Şartname
Model ve Çalışma Aralığı
Model Adı	MR-AUS70-RD05-VC4075-TC61023 Radar-EO Algılama Sistemi	Tipik Hedef	0.3 m × 0.3 m UAV target, typical target: DJI Phantom 4
Radar Algılama Aralığı	≥5000 m	Visible-Light Detection Range	≥5000 m
Görünür Işık Takip Aralığı	≥4000 m	Thermal Imaging Detection Range	≥2000 m
Termal Görüntüleme İzleme Aralığı	≥1500 m
Radar Algılama
Çalışma Frekansı	X-bandı	Teknoloji	Mechanical azimuth scanning, elevation DBF
Azimut Kapsamı	360°	Yükseklik Kapsamı	0° ~ 40°
Measurement Accuracy	Azimuth ≤0.4° RMS, Elevation ≤0.4° RMS, Range ≤10 m RMS	Kör Bölge	≤100 m
Target Refresh Rate	2 s	Anten Dönüş Hızı	30 RPM (180°/s)
Simultaneous Tracking Capacity	≥200 parça	Radial Velocity Detection Range	1 ~ 100 m/s
Güç Tüketimi	≤260 W	Güç Kaynağı	DC48V
Ağırlık	≤30 kg
HD Görünür Işık Kamerası
Sensör	1/1,8″ yıldız ışığı CMOS, ICR gündüz/gece anahtarlama	Çözünürlük	2688 × 1520
Lens	12.5 ~ 750 mm HD motorized zoom lens	Video Kodlama	H.264 / H.265
Görüntü İyileştirme	Wide dynamic range, highlight suppression, 3D digital noise reduction, automatic white balance, etc.	Sis Giderme	Optical / electronic dual defog supported
Kızılötesi Termal Görüntüleme
Dedektör	Uncooled VOx infrared focal plane array	Çözünürlük	640 × 512
Lens	23 ~ 230 mm, 10× optical zoom lens	NETD	≤40 mK
Video Kodlama	H.264 / H.265	Lens Kontrolü	Manual / automatic focus
Servo Pan-Tilt
Yapı	Coaxial side-mounted	Rotation Range	Horizontal N × 360°, pitch -10° ~ +60°, supports software and hardware limits
Dönme Hızı	Yatay 0,01° ~ 100°/s, Eğim 0,01° ~ 70°/s	Konumlandırma Hızı	Yatay ≥120°/s, Eğim ≥100°/s
Hızlanma	Yatay 100°/s², Eğim 100°/s²	Konumlama Hassasiyeti	Better than 0.005°
Zero Position Setting	Supports horizontal and pitch zero position setting	Ön Ayarlanan Pozisyonlar	≥2048
Yük Kapasitesi	≥70 kg
Yapay Zeka Takibi
Uygulama	Ön uç gömülü donanım tanıma ve izleme	İzleme Modu	Manuel izleme, otomatik izleme, radar bağlantısı desteklenir
Tanınma	Supports classification of people, vehicles, vessels, UAVs and other targets	Veri Kümesi Gereksinimi	Veri seti temini için müşteri yardımı gerekli
Genel Sistem
Arayüz	Ethernet port	Güç Kaynağı	AC220V ±20%, 50Hz
Güç Tüketimi	Peak ≤800 W, average ≤500 W	Ağırlık	≤160 kg
Boyutlar	≤L1160 mm × W460 mm × H1450 mm, reference	Koruma Sınıfı	IP66
Çalışma Sıcaklığı	-40℃ ~ +60℃
RGS2000 Low-Altitude Target Prevention, Control and Identification System
Entegre Kontrol ve Ekran	Platform-based centralized control and display of radar and electro-optical systems	Durum Göstergesi	Dynamic display of UAV target points and track information; supports radar target tracks and synchronized video recording playback
Yardımcı Araçlar	Mesafe, alan ve açı ölçümünü destekler; statik kalibrasyon azimut hesaplaması; radar-EO destekli kalibrasyon	Elektronik Harita	Supports electronic maps and radar-EO coordinate locations; online and offline 2D maps
Çoklu Ekran	Video önizleme, elektronik harita, video izleme, video oynatma ve bilgi yönetiminin bölünmüş ekran görüntüsünü destekler	Gözetimsiz Çalışma	Supports radar track data fusion, automatic radar-EO linkage and unattended multi-target operation
