MR-T02 Alçak İrtifa Gözetleme Radarı

MR-RDV05K Low-Altitude Surveillance Radar

MR-RDV05K Low-Altitude Surveillance Radar
MR-RDV05K Low-Altitude Surveillance Radar
Alçak İrtifa Gözetleme Radarı

Specification for MR-RDV05K Low-Altitude Surveillance Radar

Ürün Açıklaması:

The MR-RDV05K is a portable three-dimensional low-altitude surveillance radar designed for integrated air, ground and surface target detection. It can rapidly detect and continuously track small UAVs, medium-sized drones, aircraft, helicopters and birds while also monitoring personnel, vehicles and small surface vessels. Operating in the Ku band, the radar combines mechanical azimuth scanning with elevation digital beamforming to provide 360° surveillance and three-dimensional target information. Its simultaneous multibeam processing and advanced clutter-suppression algorithms enable stable detection in complex environments with dense targets, ground clutter and weather interference. The MR-RDV05K can operate as an independent surveillance radar or serve as a core sensing unit in radar–EO tracking, airport bird-monitoring and integrated counter-UAV systems.

Ücretsiz Teklif Alın

Ürün Tanıtımı

The MR-RDV05K Low-Altitude Surveillance Radar is a three-dimensional surveillance radar developed for the rapid detection, positioning and continuous tracking of low-altitude and ground-moving targets. It is capable of monitoring small UAVs, medium-sized drones, aircraft, helicopters and birds while simultaneously supporting the detection of personnel, vehicles and surface vessels.

The radar uses simultaneous multibeam technology together with high-performance signal processing to accurately obtain target range, azimuth, elevation, velocity and movement status in complex multi-target environments. Mechanical scanning in azimuth provides full 360° coverage, while digital beamforming in elevation enables accurate height measurement and wide elevation coverage.

A continuous-wave operating architecture and relatively low transmit power help reduce the radar’s electromagnetic signature compared with conventional pulse radar systems. Advanced clutter-suppression and target-tracking algorithms allow the radar to extract weak and small moving targets from strong ground and weather clutter while maintaining a low false-alarm rate.

The MR-RDV05K can also provide high-precision target coordinates to electro-optical cameras, bird-deterrent devices and other connected sensors. This makes it suitable for low-altitude security, critical-site protection, airport bird monitoring, low-altitude traffic surveillance, border protection, coastal surveillance and integrated counter-UAV applications.

Uygulama senaryoları

  • Küçük İHA Tespiti

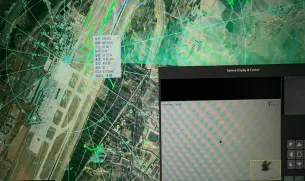

  • Radar–EO Coordinated Maritime UAV Tracking

  • Surface and Maritime Target Surveillance

  • Havaalanı Kuş Tespiti

  • Vehicle-Mounted Deployment

  • Entegre Karşı-İHA Sistemi

Ürün özellikleri ve teknik araçlar

High-Precision 3D Target Measurement
The MR-RDV05K provides accurate measurements of target range, velocity, azimuth and elevation. The resulting three-dimensional target data supports reliable surveillance, sensor cueing and continuous trajectory tracking.

360° Wide-Area Surveillance
Mechanical azimuth scanning provides full 360° coverage, while elevation digital beamforming delivers an elevation coverage range from −5° to 60°. This configuration enables wide-area monitoring of low-altitude airspace and nearby ground zones.

Simultaneous Multibeam Processing
Simultaneous multibeam technology and a high-performance signal processor enable the radar to detect and track multiple moving targets across the surveillance area in real time.

High-Refresh-Rate Target Tracking
Configurable scan rates allow the radar to provide data updates at intervals of 1, 2 or 3 seconds. The standard configuration provides a 2-second update rate at 30 rpm, supporting stable tracking of high-speed and manoeuvring targets.

Weak and Small Target Detection
Advanced signal processing enables the radar to detect small-RCS targets, including small consumer UAVs, in complex low-altitude environments.

Advanced Clutter Suppression
Refined clutter-suppression algorithms help extract weak moving targets from strong ground clutter, weather clutter and urban background interference while maintaining a low false-alarm probability.

Low Electromagnetic Signature
The continuous-wave operating architecture uses relatively low transmit power, reducing the risk of electromagnetic interception compared with conventional high-power pulse radar systems.

Multi-Target Tracking Capacity
The radar can simultaneously track at least 200 target tracks, making it suitable for dense and complex environments containing multiple aircraft, UAVs, birds, vehicles or surface targets.

Portable and Rapid Deployment
The radar main unit, turntable and tripod use a lightweight, modular design. The system can be transported, assembled, deployed and removed quickly for fixed, temporary or vehicle-mounted operations.

Multi-Sensor Integration
The MR-RDV05K provides target coordinate data through an Ethernet communication interface and can cue electro-optical cameras, bird-deterrent devices and other connected surveillance equipment.

Teknik parametreler





Alçak İrtifa Gözetleme Radarı



Parametre Şartname
Çalışma Frekansı Ku Band
Radar Architecture Mechanical Azimuth Scanning + Elevation DBF
Maximum Detection Range 5 km
Maksimum Algılama Yüksekliği 600 m
Minimum Detection Range / Blind Zone 50 m
Azimut Kapsamı 360°
Yükseklik Kapsamı −5° to 60°
Hız Ölçüm Aralığı 1–100 m/s
Small UAV Detection Range ≥3 km, RCS = 0.01 m², based on DJI Phantom 4
Medium UAV Detection Range ≥5 km, RCS = 1 m²
Vehicle and Helicopter Detection Range ≥5 km, RCS = 5 m²
Range Measurement Accuracy (RMS) ≤5 m
Velocity Measurement Accuracy (RMS) ≤0,5 m/s
Azimuth Measurement Accuracy (RMS) ≤0,4°
Elevation Measurement Accuracy (RMS) ≤0,4°
Standard Data Update Rate 2 s at 30 rpm
Optional Data Update Rates 3 s / 1 s
Optional Scan Speeds 20 rpm / 60 rpm
Simultaneous Tracking Capacity ≥200 Target Tracks
Çalışma Sıcaklığı −40°C to +55°C
Çalışma Nem Oranı ≤
Koruma Sınıfı IP66
Input Voltage DC 36–52 V
Güç Adaptörü AC 220 V to DC 48 V
Güç Tüketimi ≤200 W
İletişim Arayüzü Ethernet via Circular Aviation Connector
Toplam Ağırlık ≤27 kg
Radar Unit Weight 12 kg
Turntable Weight 15 kg



Dimensions and Weight

Component Boyutlar Net Ağırlık Packed Dimensions Gross Weight
Radar Ana Ünitesi ≤456 × 465 × 87 mm ≤12 kg ≤540 × 550 × 190 mm ≤19 kg
Radar Döner Tabla ≤415 × Ø225 mm ≤15 kg ≤380 × 390 × 510 mm ≤28 kg
Tripod ≤980 × 230 × 230 mm ≤12 kg ≤1100 × 250 × 250 mm ≤16 kg



Ürün Listesi

No. Ürün Adet Birim Açıklama
1 Radar Ana Ünitesi 1 Birim —
2 Radar Döner Tabla 1 Birim —
3 Tripod 1 Birim —
4 Radar Ana Ünite Taşıma Kutusu 1 Dava Aluminum alloy transport case
5 Turntable Transport Case 1 Dava Aluminum alloy transport case
6 Power Adapter Cable 1 Piece AC 220 V to DC 48 V, 15 m in length
7 İletişim Kablosu 1 Piece Connects the radar to the display and control terminal, 15 m in length
8 Assembly Tools and Fasteners 1 Set Used to assemble the radar main unit, turntable, and tripod
9 Accompanying Documentation 1 Set User manual and other documents in electronic format
